Create / Import new View Form

Login to Swift App Design Studio

Login in to the App Design Studio using your Swift admin account:

Import new View Form

Click the Application you want to import the new View/Action Form for. This will open up the App Designer.

Click Import icon
 to import a new View Form.

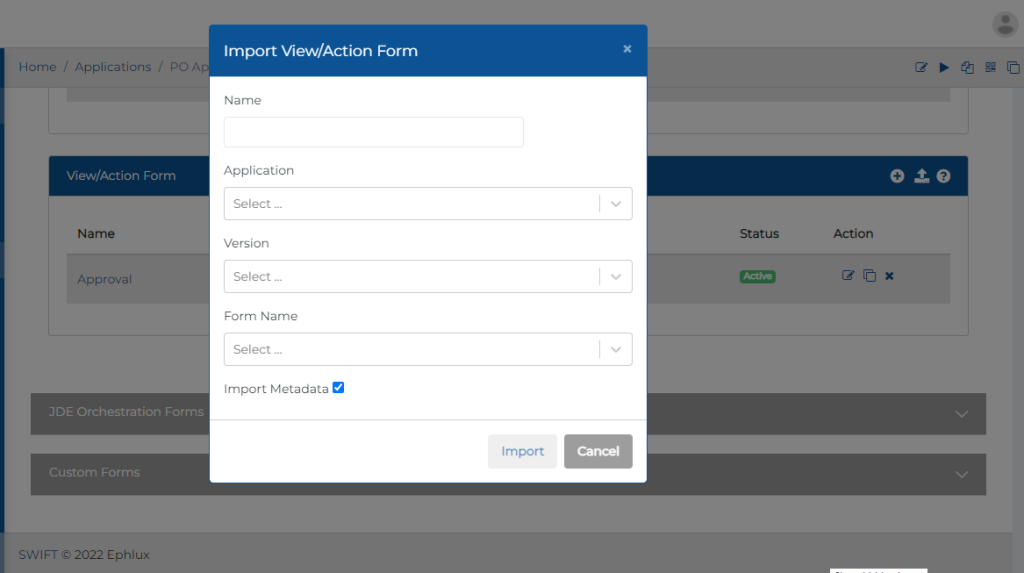

  1. Enter the name of the new Entry Form.
  2. Select the underlying JD Edwards Application.
  3. Select the Application Version.
  4. Select the underlying JD Edwards Form Name
  5. Check/Un check ‘import Metadata option’

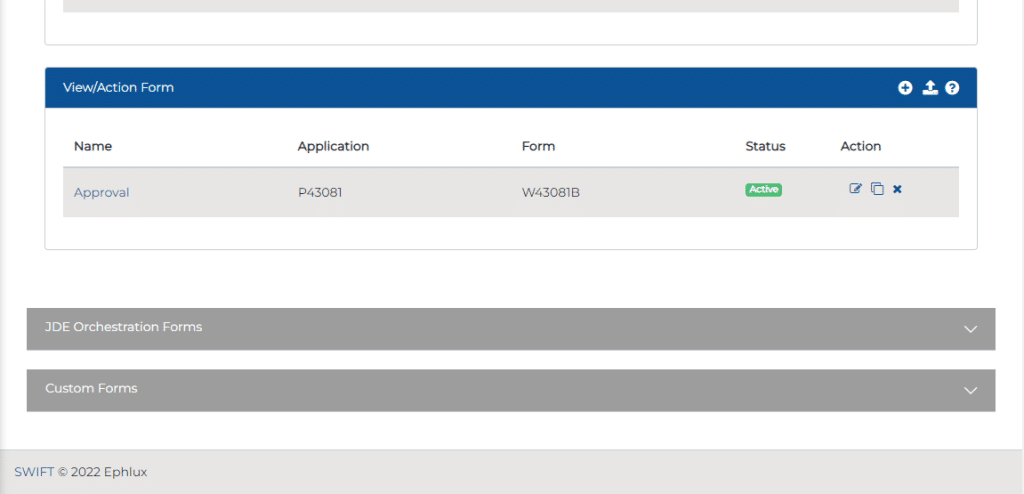

This will import the new View Form based on the selected JD Edwards Form. Click on the title of the newly imported form.

Remove fields that you don’t want and group them under different Headings and use Line Breaks to format it better:

Add / Configure Actions on the View Form

Drag Drop Button on the View Form.

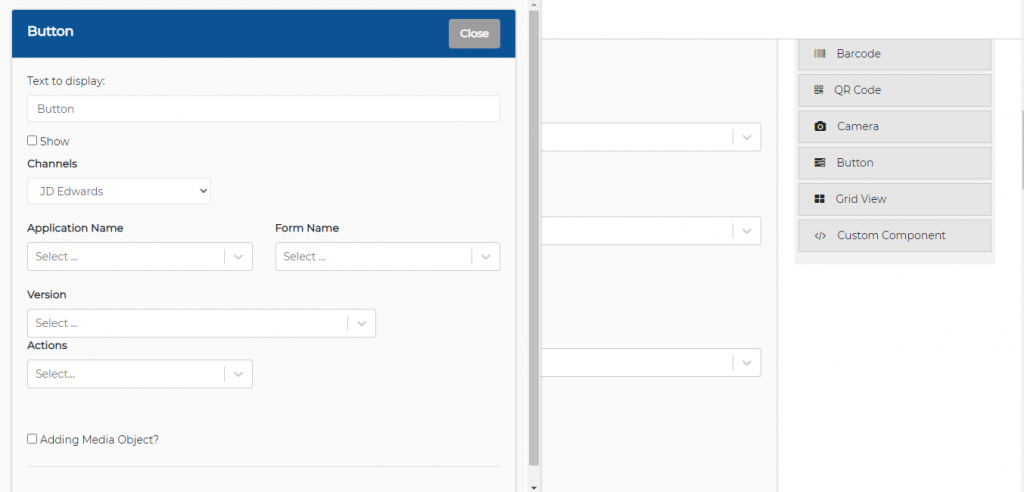

Configure Button Control

Click on Edit on the Button Control to configure it:

  1. Enter the Button Title in Text to display
  2. Select a channel (such as JD Edwards) from the Channels dropdown
  3. Select the JD Edwards Application name, Form Name, Version and Actions from their respective dropdowns.

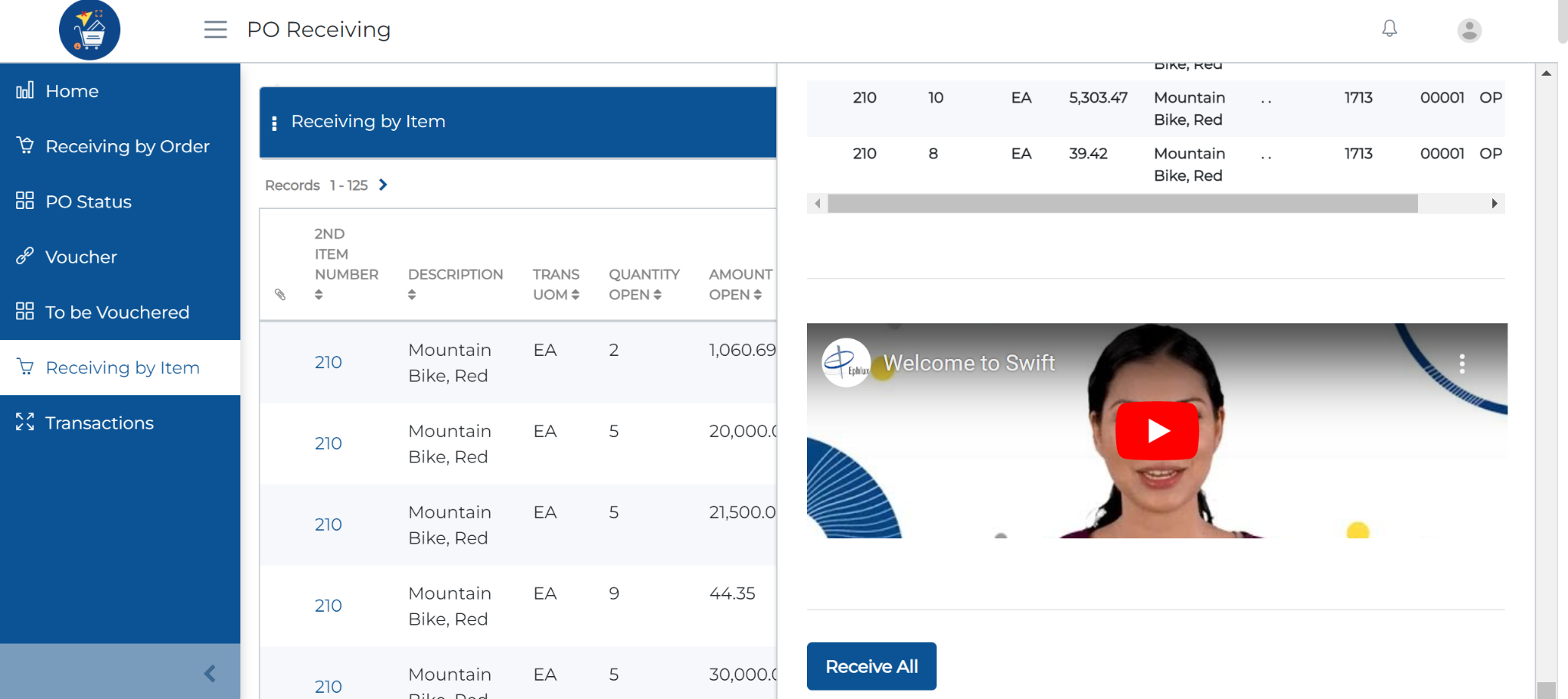

Video and Map Component using iFrame

can now use the iFrame component in View Action Forms. It allows you to embed a YouTube video and Google Map.

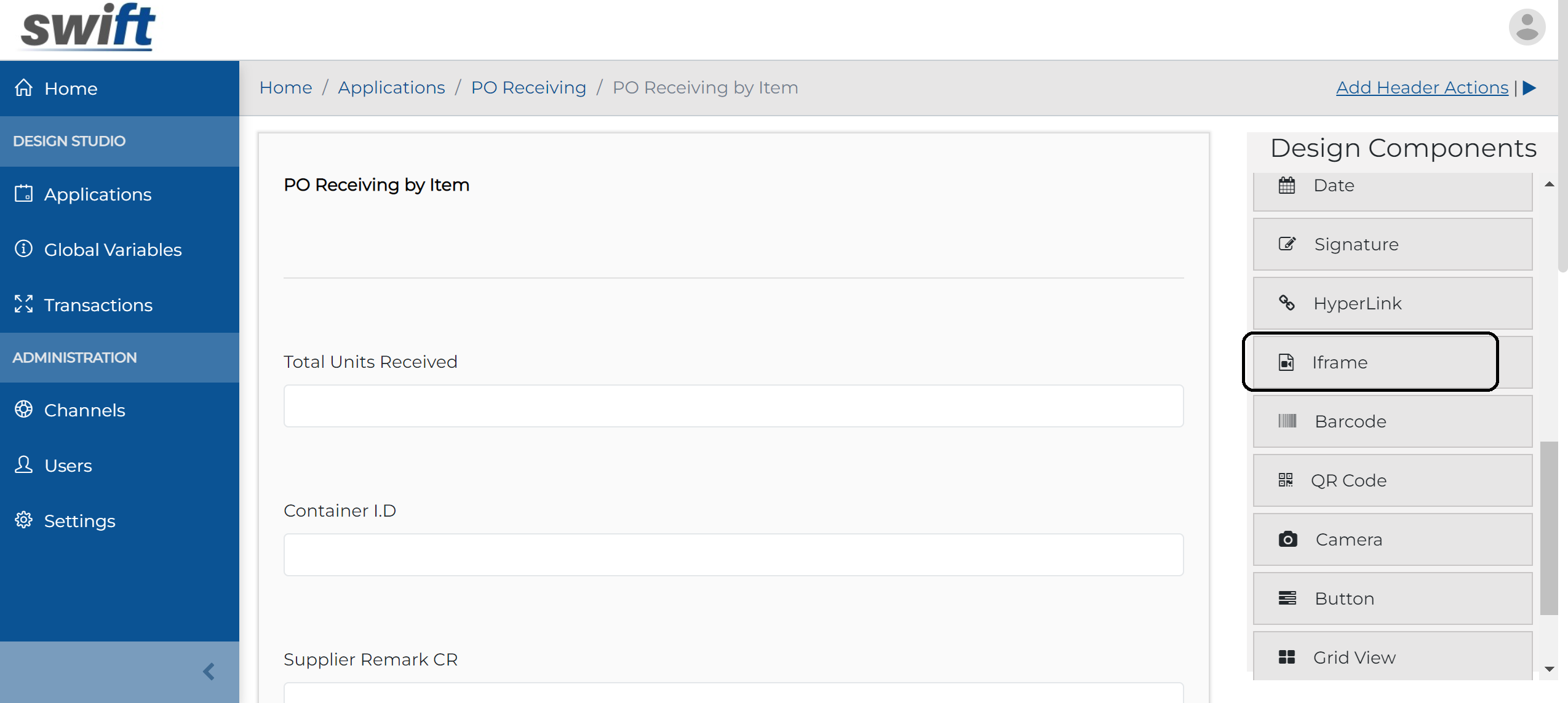

Simply select the iFrame option and embed a Youtube and Google Map.
